FN7438.0
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143
| Intersil (and design) is a registered trademark of Intersil Americas Inc.
Copyright © Intersil Americas Inc. 2005. All Rights Reserved.
All other trademarks mentioned are the property of their respective owners.
EL9200, EL9201, EL9202
Programmable V
COM
The EL9200, EL9201, and EL9202 represent programmable
V
COM
amplifiers for use in TFT-LCD displays. Featuring 1,
2, and 4 channels of V
COM
amplification, respectively, each
device features just a single programmable current source
for adding offset to one V
COM
output. This current source is
programmable using a single wire interface to one of 128
levels. The value is stored on an internal EEPROM memory.
The EL9200 is available in the 12-pin DFN package and the
EL9201 and EL9202 are available in 24-pin QFN packages.
All are specified for operation over the -40°C to +85°C
temperature range.

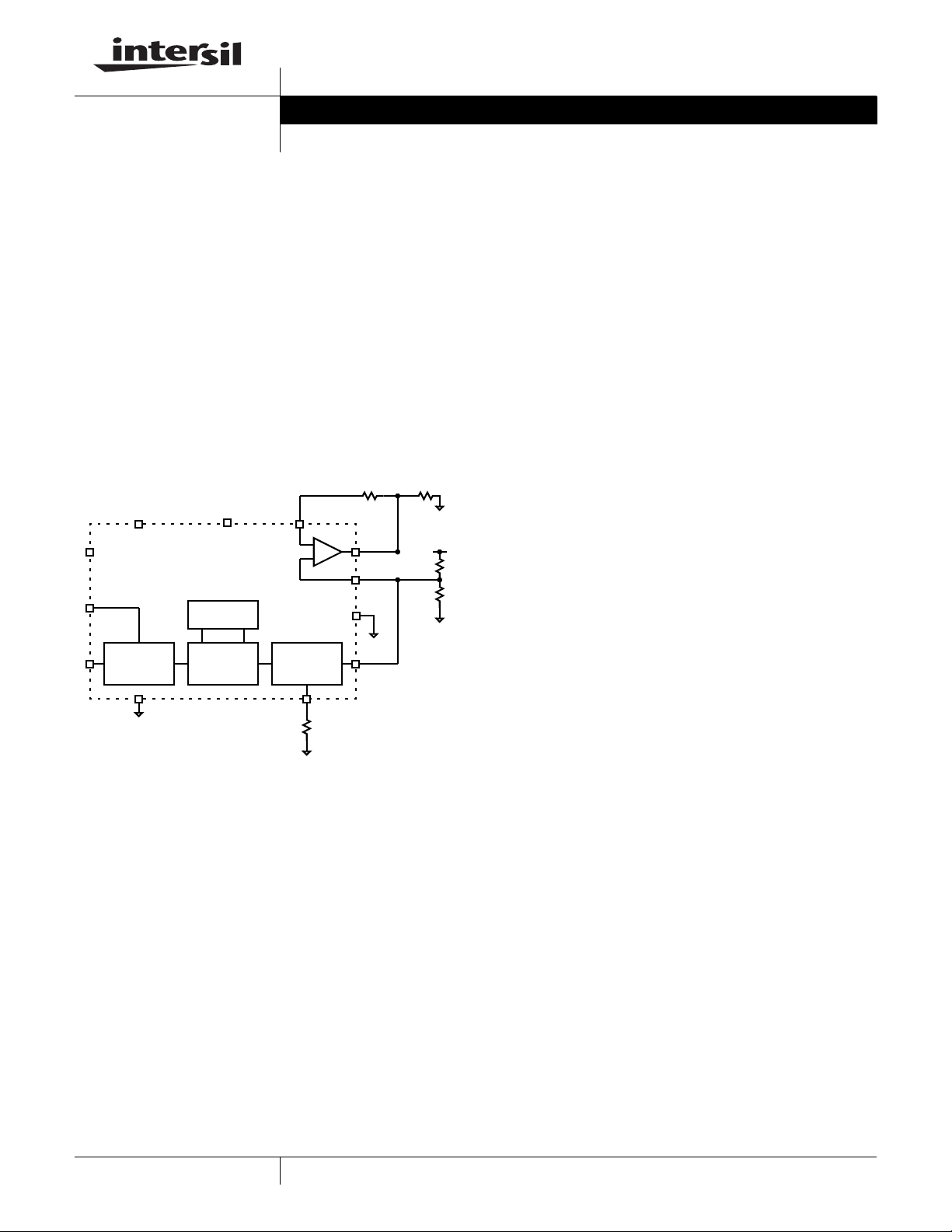

Typical Block Diagram
Features
• 128 step adjustable sink current
• EEPROM memory
• 2-pin adjustment and disable
• Single, dual or quad amplifiers
- 44MHz bandwidth
- 80V/µs slew rate
- 60mA continuous output
- 180mA peak output
• Up to 18V operation
• 2.6V to 3.6V logic control
• Pb-free available (RoHS compliant)
Applications
•TFT-LCD V
COM
supplies for
-LCD-TVs
- LCD monitors
-
+
EEPROM
CONTROL
UP/DOWN
COUNTER
ANALOG
POT
CTL
CE
V
SD
A
VDD
GND SET
R
SET
I
OUT
INP
V
OUT
INN
R
F
R
G
R
1
R
2
A
VDD
V
S
+
GND
Data Sheet April 7, 2005
