PAM8019
NEW PR ODUC T
3W STEREO CLASS-D AUDIO AMPLIFIER AND CLASS AB HEADPHONE DRIVER
WITH DC VOLUME CONTROL, NON-CLIP POWER LIMIT AND UVP
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
- and Antimony-
free, "Green" and Lead-free.
3. Halogen- and Antimony-
Br + Cl) and <1000ppm antimony compounds.
Description
The PAM8019 is a Stereo 3W Class D audio power amplifier for
driving bridged-tied speakers and includes a Stereo Class AB amplifier
for driving headphones. The advanced 64 step DC volume control
minimizes external components allowing simple and accurate volume
control over the gain range of +20dB (Volume=0V) to -60dB
(Volume=5V).
Integrated non-clip power limit technology suppresses output
automatically with programmable power limit, improving the sound
quality and helping to protect the speakers. Programmable under
voltage protection (UVP) can be used to shut down the PAM8019 at a
pre-determined voltage level helping to eliminate speaker pop by
shutting down before the power supply collapses.
The PAM8019 is available in the power efficient and space saving
U-QFN4040-20.

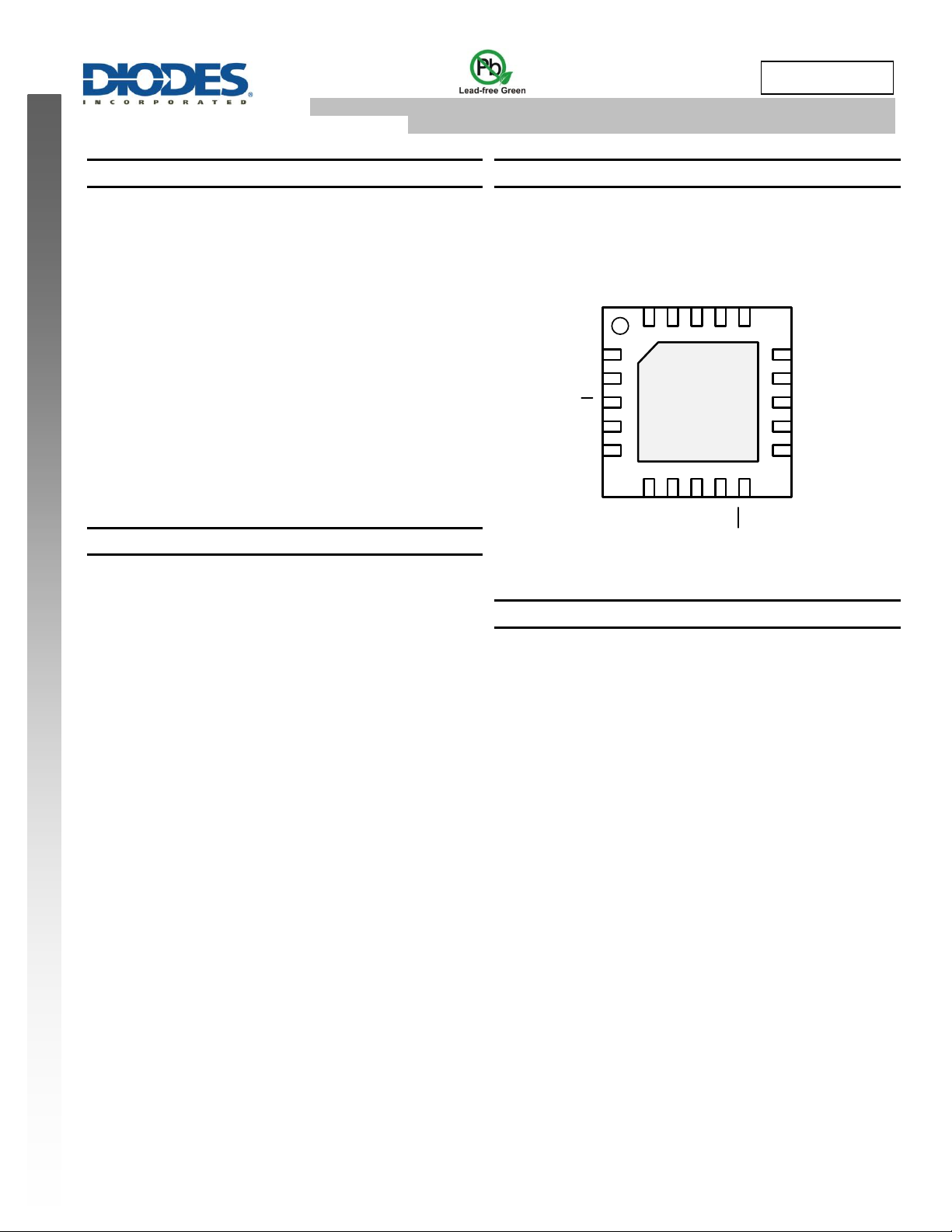

Pin Assignments
Top View
R
OUT
N
HPR
OUT
SD
Bypass
R
IN
GND
L
IN
Volume
Mute
HP/SPK
L
OUT
N
HPL
OUT
VDD
UVP
PL
V
DD
R
OUT
P
GND
L
OUT
P
VDD
1
20
GND
Features
3W Stereo Class D Amplifier with Class AB Headphone Amplifier
Filter Free and Low EMI Architecture
Operating Voltage: 2.8V to 5.5V
Low Quiescent Current of 7mA at a V
DD
of 5V
64 Step DC Volume Control with Hysteresis from -60dB to +20dB
Output Power
- Class D Amplifier THD+N=1%
VDD=5V,Load =4; Po=2.4W / Load =8; Po=1.4W
- Class D Amplifier THD+N=10%
VDD=5V, Load =4; Po=3.0W / Load =8; Po=1.7W
- Class AB Headphone Amplifier
VDD=5V, Load=32; Po=60mW
Speaker or Headphone Select
Non Clip Power Limit (NCPL) Function
OVP and Programmable UVP Protection
Thermal and Over-Current Protection with Auto-Recovery
Power Enhance Package U-QFN4040-20
Lead Free and Green Devices Available (RoHS Compliant)
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green Device (Note 3)
Applications
LCD Monitors and TVs
Projectors / All-In-One Computers
Portable / Active Speakers
Portable DVD Players / Game Machines
