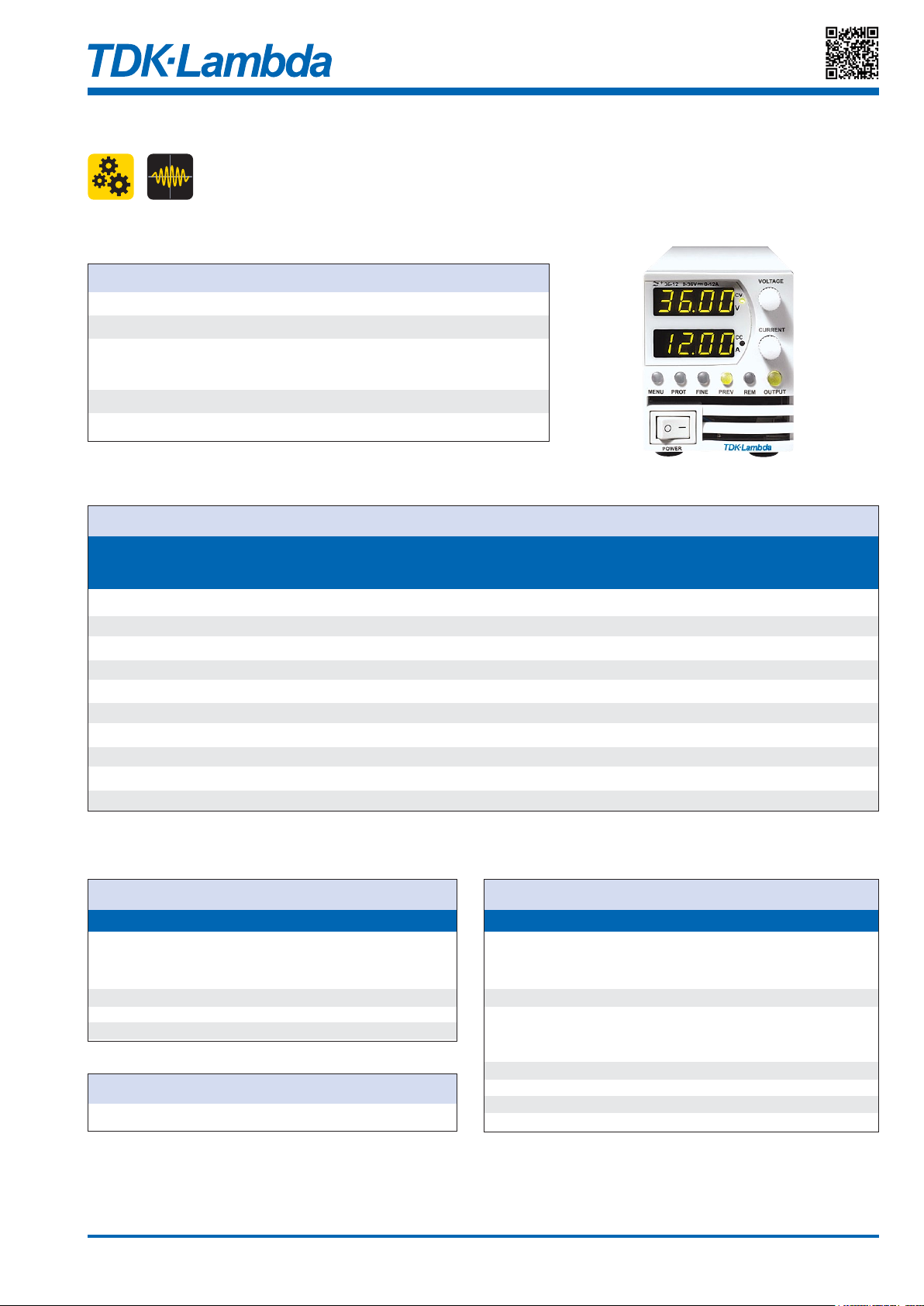

Z+ Series
,QGXVWULDO 7HVW
200W and 400W
Programmable Power Supplies
Z+ Series
1
www.uk.tdk-lambda.com/zplus
Factory Installed Options
Part Number Example
Option Code
Front panel terminals (60V or 25A max)* -L
Only one of the options below can be included:
GPIB Interface* -IEEE
Voltage Programming Isolated Analog Interface* -IS510
Current Programming Isolated Analog Interface* -IS420
LAN Interface (Complies with “LXI” Class C) -LAN
Z10-20-LAN-L
Accessories
Part Number
19” Rack Housing
(Accepts four 105mm width units or six 70mm width units) Z-NL100
70mm Blanking Panel For 19” Rack Z-BP
105mm Blanking Panel For 19” Rack Z-WBP
Dual/Triple Housing
(Accepts two 105mm case units or three 70mm case units) Z-NL200
Serial Link Cable (One is included with each power supply) Z-RJ45
Communication Cable RS485 Z-485-9
Communication Cable RS232 Z-232-9
British AC Cord Z-GB
European AC Cord Z-E
Model Selector
Voltage Current Max Ripple Noise Ripple Efciency FrontPanel
Model Adjust Adjust Power 5Hz-1MHz 20MHz BW 5Hz-1MHz % Output Jacks
Range Range (W) (mV) (mV) (mA) (100-200VAC) (Option)
Z10-20 0 - 10 0 - 20 200 5 50 50 80 / 82 Yes
Z10-40 0 - 10 0 - 40 400 5 50 50 80 / 82 No
Z20-10 0 - 20 0 - 10 200 5 50 30 82 / 84 Yes
Z20-20 0 - 20 0 - 20 400 5 50 30 81 / 83 Yes
Z36-6 0 - 36 0 - 6 216 5 50 15 83 / 85 Yes
Z36-12 0 - 36 0 - 12 432 5 50 15 83 / 85 Yes
Z60-3.5 0 - 60 0 - 3.5 210 5 50 8 83 / 85 Yes
Z60-7 0 - 60 0 - 7 420 5 50 8 83 / 85 Yes
Z100-2 0 - 100 0 - 2 200 8 80 3 83 / 85 No
Z100-4 0 - 100 0 - 4 400 8 80 3 84 / 86 No
Features Benets
• 2U high Minimises system rack height
• Built-in USB, RS232 & RS485 Highly exible system integration
• Optional LAN, GPI & isolated Choice of additional communications
analogue programming interfaces
• Arbitrary function generation Convenient for repeated test processes
• 5 year warranty High reliability
* Requires wide body (105mm) case style
