Pressure Sensors
Low-cost, Stainless Steel, Isolated Sensors
13 mm Series
Sensing and Control
FEATURES
• Rugged, isolated stainless
steel package
• Reliable semiconductor
technology
• Calibrated and
temperature compensated
• Voltage or current supply
options
• Absolute and sealed gage
pressures
• Low-cost cell package
• Absolute pressure
• 0 psi to 500 psi, 1000 psi,
2000 psi, 3000 psi, and
5000 psi
TYPICAL APPLICATIONS
• Industrial controls
• Hydraulic controls
• Tank pressure
• Pressure transmitters
• Process control systems
WARNING
PERSONAL INJURY
DO NOT USE these
products as safety or
emergency stop devices or
in any other application
where failure of the product
could result in personal
injury.
Failure to comply with
these instructions could
result in death or serious
injury.
Honeywell’s 13 mm Series stainless steel pressure sensors are designed
for high pressure applications that involve measurement of hostile media in
harsh environments. This series uses Honeywell’s proven piezoresistive
semiconductor sensor chip in an oil-isolated housing with or without an
integral ceramic for temperature compensation and calibration. This design
has proven to be highly reliable, stable and accurate.
These sensors feature a weld-ring collar and special back support ring for
high cycle life capability as they are designed for further package integration
in OEM (Original Equipment Manufacturer) applications. Products are
available with pressure ranges from 500 psi through 5000 psi and can be
used with voltage or current supplies.

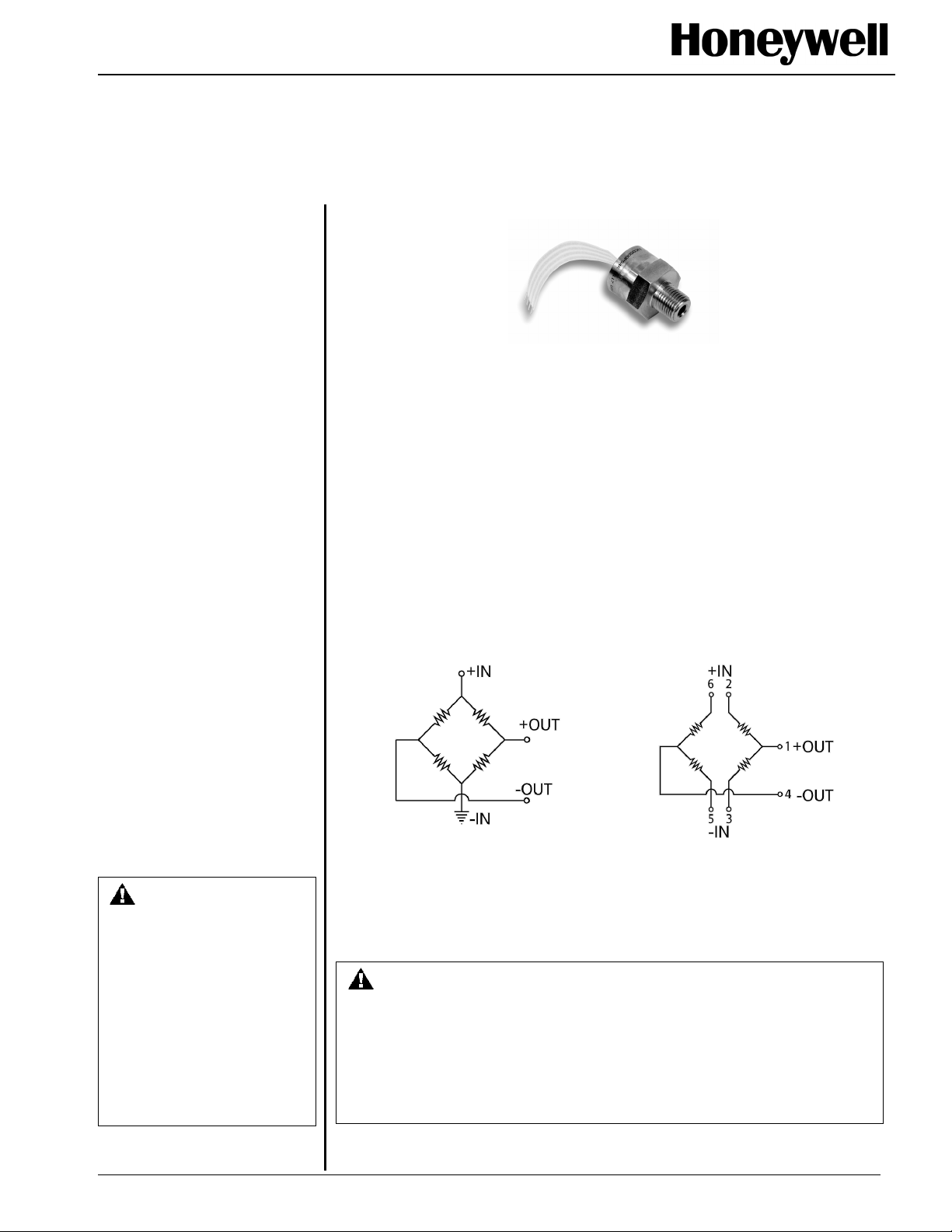

EQUIVALENT CIRCUIT
13 mm compensated series 13 mm uncompensated series
WARNING
MISUSE OF DOCUMENTATION
• The information presented in this product sheet is for reference only. Do
not use this document as a product installation guide.
• Complete installation, operation, and maintenance information is provided
in the instructions supplied with each product.
Failure to comply with these instructions could result in death or
serious injury.
