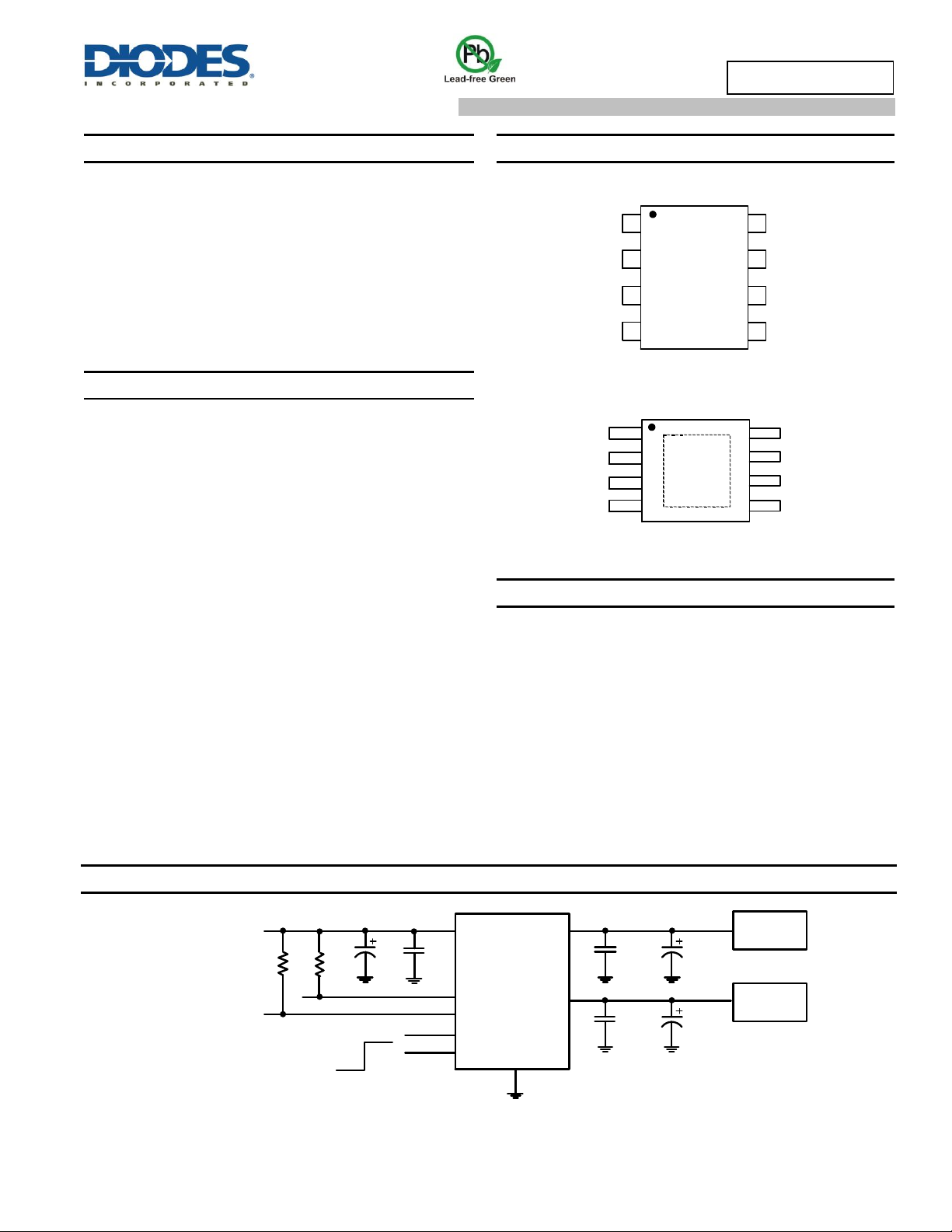

AP2146/AP2156
Document number: DS31813 Rev. 4 - 2
1 of 17
www.diodes.com
January 2016
© Diodes Incorporated
AP2146/AP2156
0.5A DUAL CHANNEL CURRENT-LIMITED POWER SWITCH
Description
The AP2146 and AP2156 are integrated high-side power switches
optimized for Universal Serial Bus (USB) and other hot-swap
applications. The family of devices complies with USB 2.0 and
available with both polarities of Enable input. They offer current and
thermal limiting and short circuit protection as well as controlled rise
time and under-voltage lockout functionality. A 7ms deglitch capability
on the open-drain Flag output prevents false over-current reporting
and does not require any external components.
All devices are available in SO-8 and MSOP-8EP packages.
Features
Dual USB port power switches
Over-Current and Thermal Protection
0.8A Accurate Current Limiting
Reverse Current Blocking
90mΩ On-Resistance
Input Voltage Range: 2.7V - 5.5V
0.6ms Typical Rise Time
Very Low Shutdown Current: 1µA (Max)
Fault Report (FLG) With Blanking Time (7ms Typ)
ESD Protection: 6KV HBM, 300V MM
Active Low (AP2146) or Active High (AP2156) Enable
Ambient Temperature Range -40ºC to +85°C
SO-8 and MSOP-8EP (Exposed Pad): Available in “Green”
Molding Compound (No Br, Sb)
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
UL Recognized, File Number E322375
IEC60950-1 CB Scheme Certified
Pin Assignments
SO-8
( Top View )
1
2
3
4
8
7
6
5
OUT1
IN
OUT2
GND
EN1
EN2
FLG2
FLG1
MSOP-8EP
1
2
3
4
8
7
6
5
OUT1
IN
OUT2
GND
EN1
EN2
FLG2
FLG1
( Top View )
Applications
Consumer Electronics – LCD TV & Monitor, Game Machines
Communications – Set-Top-Box, GPS, Smartphone
Computing – Laptop, Desktop, Servers, Printers, Docking Station,
HUB
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
Typical Applications Circuit
0.1mF
IN
GND
EN2
OUT1
ON
68mF
Power Supply
2.7V to 5.5V
0.1mF
OFF
FLG1
Load
10k
10k
FLG2
EN1
OUT2
68mF0.1mF
Load
10mF
