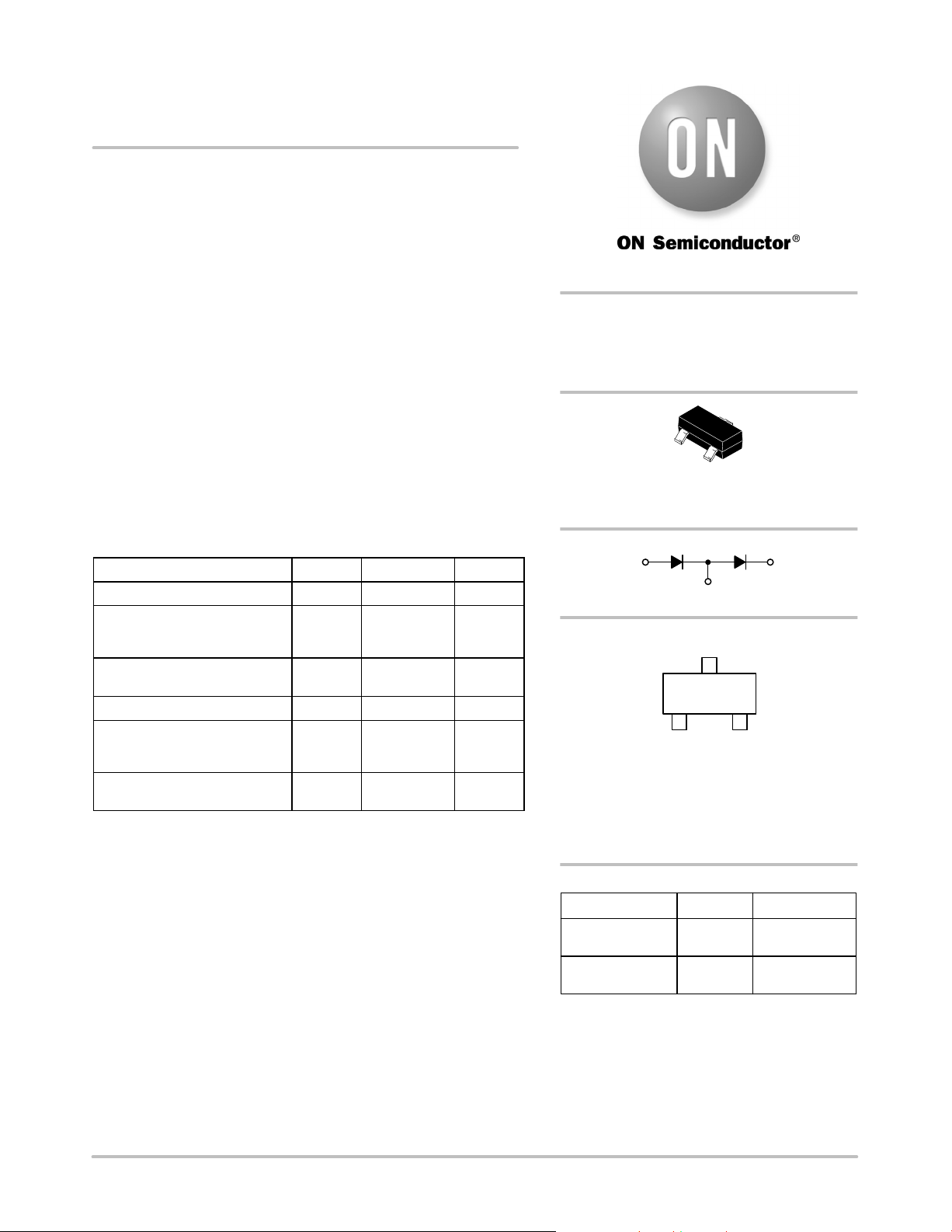

Semiconductor Components Industries, LLC, 2011
November, 2011 − Rev. 11
1 Publication Order Number:
BAS40−04LT1/D
BAS40-04LT1G,
SBAS40-04LT1G
Dual Series
Schottky Barrier Diode
These Schottky barrier diodes are designed for high speed switching
applications, circuit protection, and voltage clamping. Extremely low
forward voltage reduces conduction loss. Miniature surface mount
package is excellent for hand held and portable applications where
space is limited.
Features
Extremely Fast Switching Speed
Low Forward Voltage
AEC Qualified and PPAP Capable
S Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant*
MAXIMUM RATINGS
Rating Symbol Value Unit
Reverse Voltage V
R
40 V
Forward Power Dissipation
@ T
A
= 25C
Derate above 25C
P
F
225
1.8
mW
mW/C
Operating Junction and Storage
Temperature Range
T
J,
T
stg
−55 to +150 C
Forward Continuous Current I
FM
120 mA
Single Forward Current
t v 1 s
t v 10 ms
I
FSM
200
600
mA
Thermal Resistance (Note 1)
Junction−to−Ambient (Note 2)
R
q
JA
508
311
C/W
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. FR−4 @ minimum pad.
2. FR−4 @ 1.0 x 1.0 in pad.
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
http://onsemi.com
Device Package Shipping
†
ORDERING INFORMATION
SOT−23 (TO−236)
CASE 318
STYLE 11
40 VOLTS
SCHOTTKY BARRIER DIODES
MARKING DIAGRAM
CB = Specific Device Code
M = Date Code*
G = Pb−Free Package
ANODE
1
CATHODE
2
3
CATHODE/ANODE
BAS40−04LT1G SOT−23
(Pb−Free)
3,000 /
Tape & Reel
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
1
CB MG
G
(Note: Microdot may be in either location)
*Date Code orientation and/or overbar may
vary depending upon manufacturing location.
SBAS40−04LT1G SOT−23
(Pb−Free)
3,000 /
Tape & Reel
