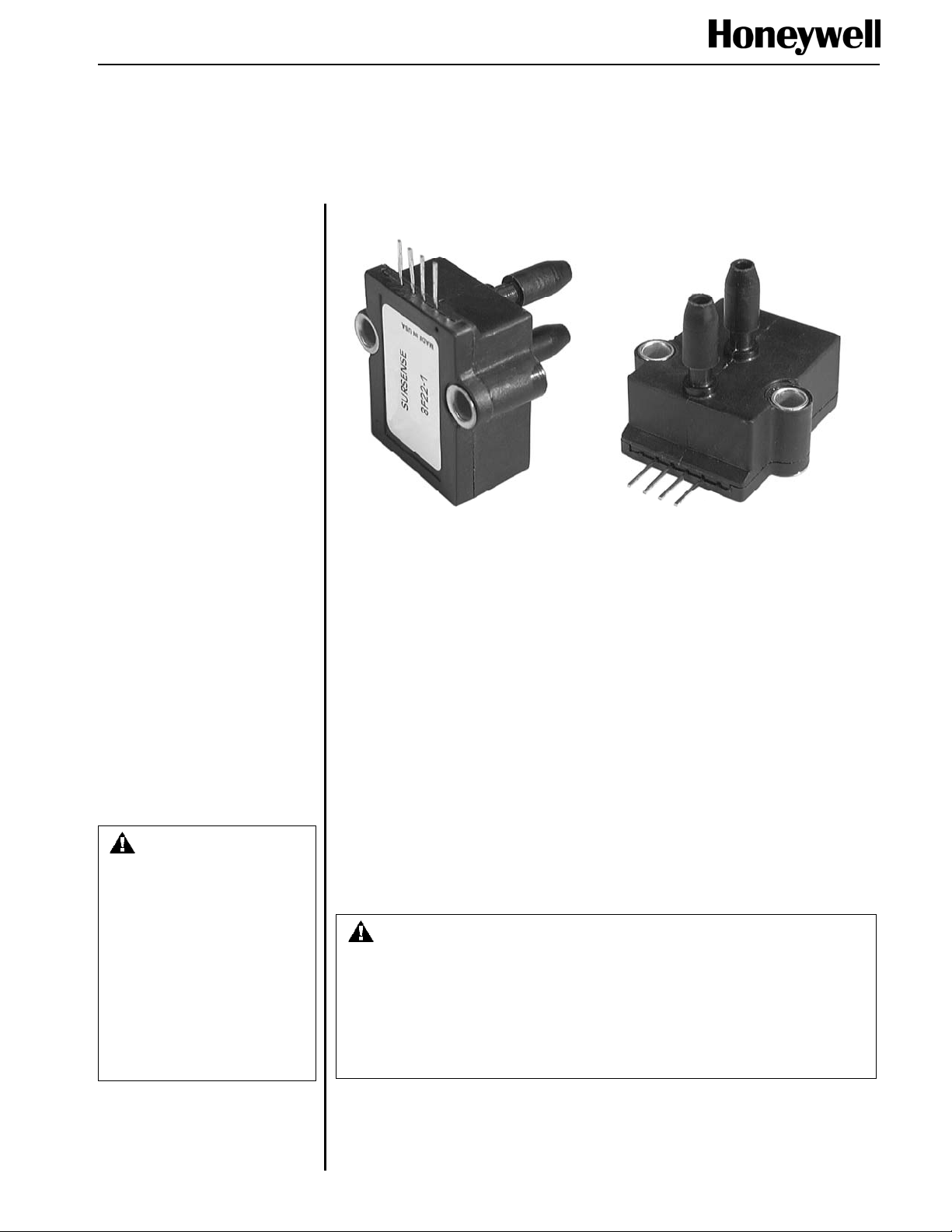

Silicon Pressure Sensors
Ultra Low Pressure Sensing
DC Serie
s
FEATURES
• Ultra Low Pressure
Sensing, down to
2.5 mBar
• ASIC Technology
• Available in Gage and
Differential Pressure
Ranges
• Available in Ratiometric
and Regulated
• Temperature Compensated
over 0 °C to 50°C
[32 °F to 122 °F]
• Combined Linearity and
Hysteresis error < ±0.25 %
Span
TYPICAL APPLICATIONS
• Medical Instrumentation
• HVAC
• Environmental Controls
• Portable Monitors
WARNING
PERSONAL INJURY
DO NOT USE these
products as safety or
emergency stop devices or
in any other application
where failure of the product
could result in personal
injury.
Failure to comply with
these instructions could
result in death or serious
injury.
GENERAL DESCRIPTION
The DC Series pressure sensors combine SURSENSE™ precision high
sensitivity silicon sensing capabilities with the latest in Application Specific
Integrated Circuitry ASIC technology to produce one of the most precise,
reliable pressure sensors in the market. The SURSENSE technology
provides Dynamic Self Compensation which substantially reduces offset
errors due to changes in temperature, stability to warm up, long term
instability and position sensitivity.
When operated with an unregulated 7.0 Vdc to 16.0 Vdc supply the DC
sensors provides a ratiometric 0.50 to 4.50 Vdc output (4.0 Vdc span).
WARNING
MISUSE OF DOCUMENTATION
• The information presented in this product sheet is for reference only.
Do not use this document as a product installation guide.
• Complete installation, operation, and maintenance information is
provided in the instructions supplied with each product.
Failure to comply with these instructions could result in death or
serious injury.
