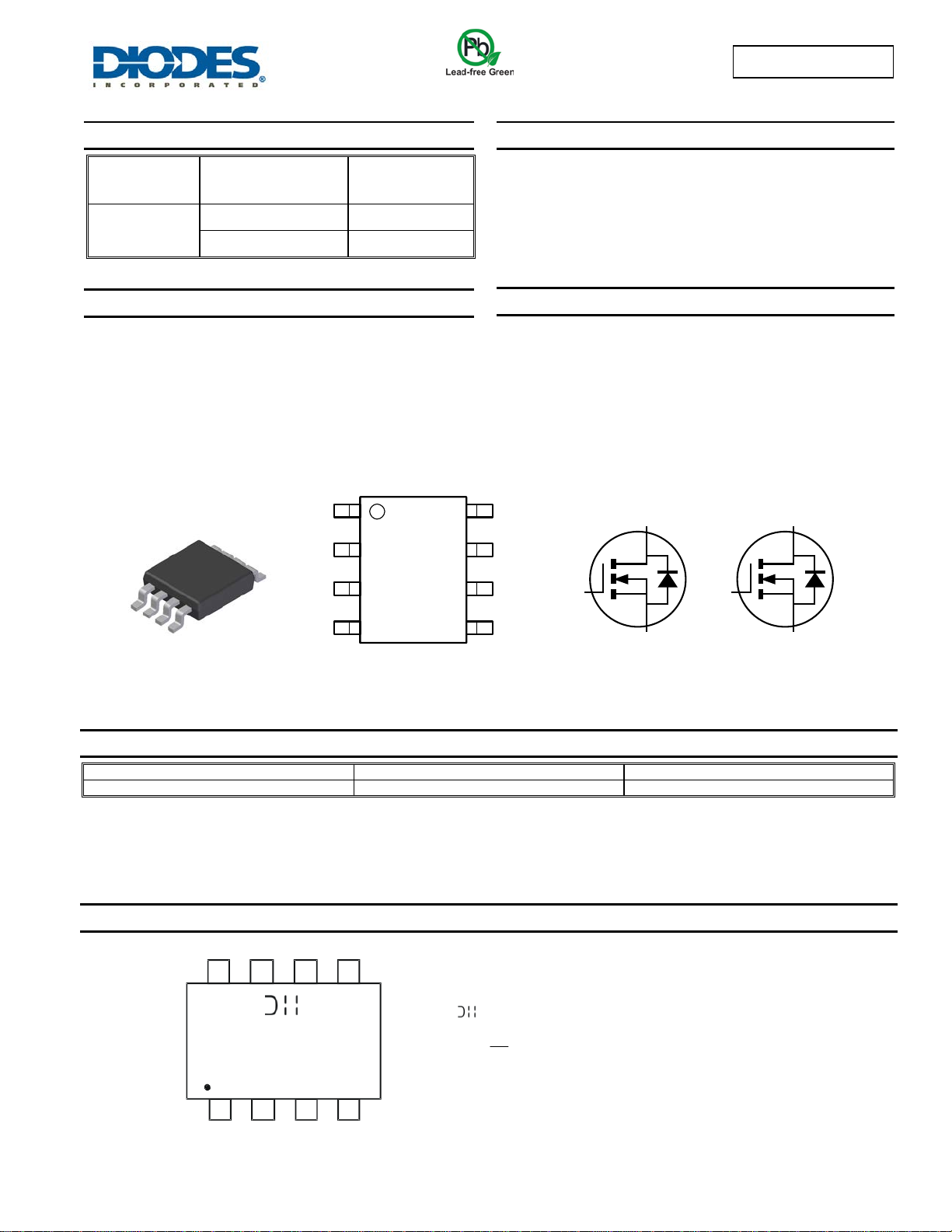

DMN6040SSD
ADVANCE INFORMATION
60V DUAL N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on) max
I
D
T
A
= +25°C
60V
40mΩ @ V
GS
= 10V
5.0A
55mΩ @ V
GS
= 4.5V
4.4A
Description and Applications
This new generation MOSFET is designed to minimize the on-state
resistance (R
DS(on)
) and yet maintain superior switching performance,
making it ideal for high efficiency power management applications.
• DC-DC Converters
• Power Management Functions
• Backlighting
Features and Benefits
• Low Input Capacitance
• Low On-Resistance
• Fast Switching Speed
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: SO-8
• Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminal Connections: See Diagram
• Terminals: Finish – Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
• Weight: 0.074 grams (approximate)
Ordering Information (Note 4)
Part Number
Case
Packaging
DMN6040SSD-13
SO-8
2,500/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
Top View
Top View
Pin Configuration
Equivalent Circuit
D2
S2
G2
D1
S1
G1
D1S1
G1
S2
G2
D1
D2
D2
1
4
8
5
N
6040
SD
WW
YY
= Manufacturer’s Marking
N6040SD
= Product Type Marking Code
YYWW = Date Code Marking
YY
or YY = Year (ex: 14= 2014)
WW = Week (01
- 53)
DMN6040SSD
Document number: DS35673 Rev. 4 - 2
1 of 6
www.diodes.com
August 2014
© Diodes Incorporated
