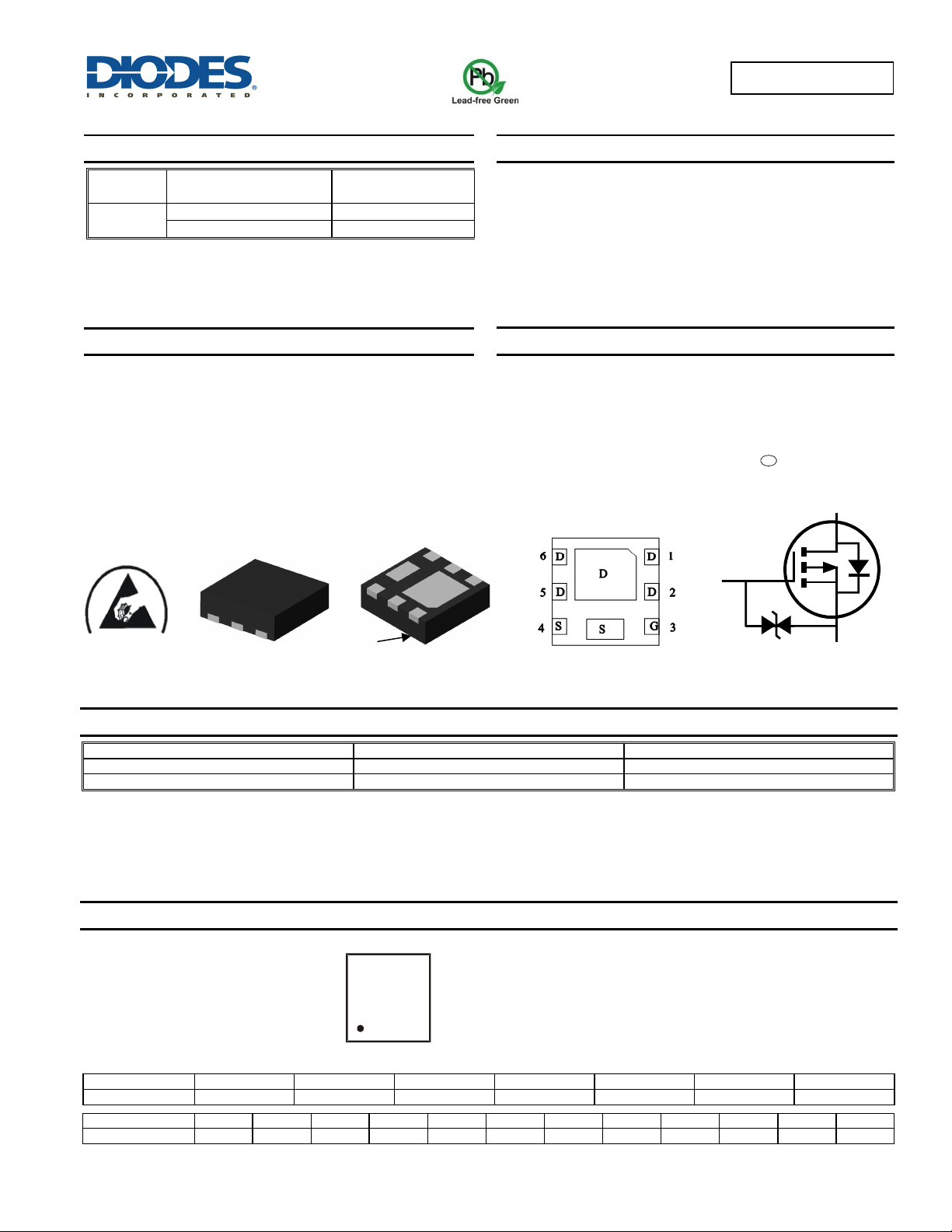

DMP2021UFDF
Document number: DS37195 Rev. 3 - 2
1 of 7
www.diodes.com
April 2015
© Diodes Incorporated
D
MP2021UFDF
ADVANCE INFO R MA T I O N
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
max
I
D
max
T
A
= +25°C
-20V
16mΩ @ V
GS
= -4.5V
-9.0A
22mΩ @ V
GS
= -2.5V
-7.7A
Description and Applications
This MOSFET is designed to minimize on-state resistance (R
DS(ON)
)
and yet maintain superior switching performance, making it ideal for
high-efficiency power management applications.
• Battery Management Application
• Power Management Functions
• DC-DC Converters
Features and Benefits
• 0.6mm Profile – Ideal for Low Profile Applications
• PCB Footprint of 4mm
2
• Low Gate Threshold Voltage
• Low On-Resistance
• ESD protected Gate
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: U-DFN2020-6
• Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish – NiPdAu over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
• Weight: 0.007 grams (Approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMP2021UFDF-7 U-DFN2020-6 3,000/Tape & Reel
DMP2021UFDF-13 U-DFN2020-6 10,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year
2014
2015
201
6
201
7
201
8
201
9
20
20
Code
B C D E F G H
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1 2 3 4 5 6 7 8 9 O N D
P1 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: C = 2015)
M = Month (ex: 9 = September)
U-DFN2020-6
Equivalent Circuit
Pin1
Bottom View
Top View
Pin Out
ESD PROTECTED
Bottom View
P1
Y
M
D
S
G
Gate Protection
Diode
U-DFN2020-6
e4
