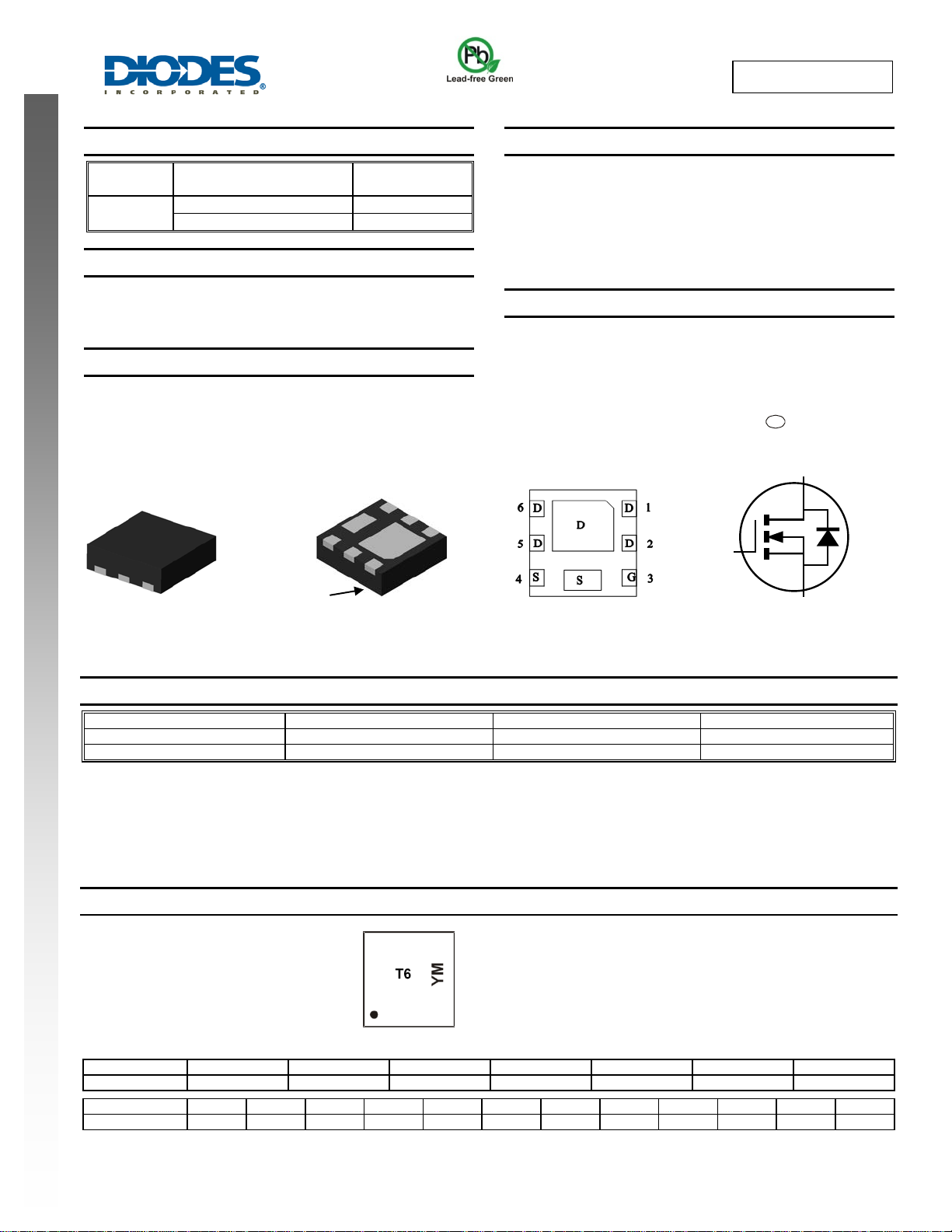

DMT6016LFDF
ADVANCE INFORMATION
NEW PRODUCT
60V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON) max
I
D max
T
A
= +25°C
60V
16mΩ @ V
GS
= 10V
8.9A
27mΩ @ V
GS
= 4.5V
6.8A
Description
This new generation MOSFET is designed to minimize the on-state
resistance (R
DS(ON)
) and yet maintain superior switching performance,
making it ideal for high efficiency power management applications.
Applications
• Load Switch
• Adaptor Switch
• Notebook PC
Features and Benefits
• 100% Unclamped Inductive Switch (UIS) Test in Production
• 0.6mm Profile – Ideal for Low Profile Applications
• PCB Footprint of 4mm
2
• Low On-Resistance
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. "Green" Device (Note 3)
Mechanical Data
• Case: U-DFN2020-6
• Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish – NiPdAu over Copper leadframe.
Solderable per MIL-STD-202, Method 208
• Weight: 0.007 grams (Approximate)
Ordering Information (Note 4)
Part Number
Marking
Reel size (inches)
Quantity per reel
DMT6016LFDF-7
T6
7
3,000
DMT6016LFDF-13
T6
13
10,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year
2014
2015
2016
2017
2018
2019
2020
Code
B
C
D
E
F
G
H
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1
2
3
4
5
6
7
8
9
O
N
D
U-DFN2020-6
T6 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex:
A = 2014)
M = Month (ex: 9 = September)
Equivalent Circuit
Pin1
e4
D
S
G
Bottom View
Top View
Pin Out
Bottom View
DMT6016LFDF
D
atasheet number: DS37203 Rev. 4 - 2
1 of 6
www.diodes.com
September 2014
© Diodes Incorporated
