© Semiconductor Components Industries, LLC, 2013
September, 2013 − Rev. 6
1 Publication Order Number:
MJ21195/D

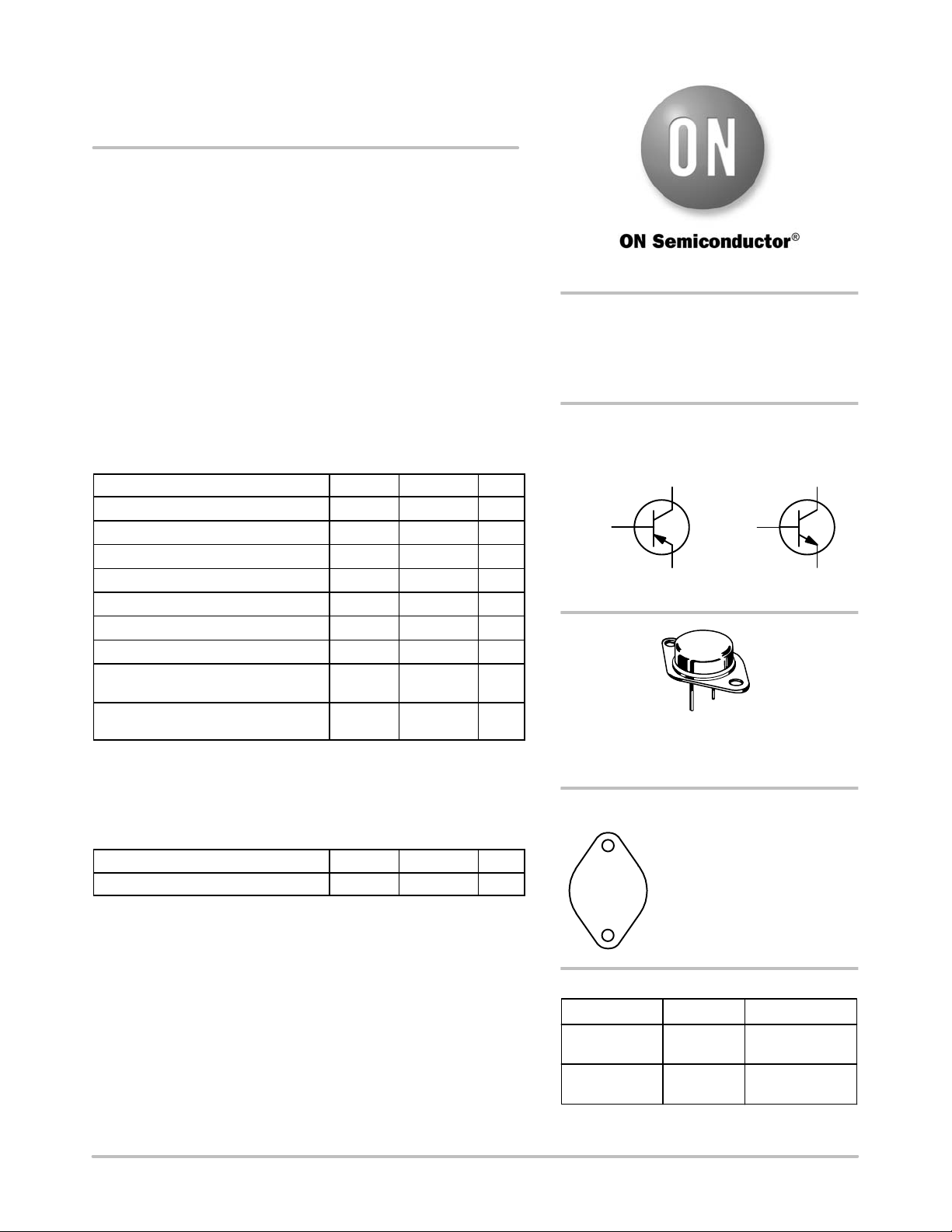

MJ21195G - PNP
MJ21196G - NPN
Silicon Power Transistors
The MJ21195G and MJ21196G utilize Perforated Emitter
technology and are specifically designed for high power audio output,
disk head positioners and linear applications.
Features
• Total Harmonic Distortion Characterized
• High DC Current Gain
• Excellent Gain Linearity
• High SOA
• These Devices are Pb−Free and are RoHS Compliant*
MAXIMUM RATINGS
Rating Symbol Value Unit
Collector−Emitter Voltage V
CEO
250 Vdc
Collector−Base Voltage V
CBO
400 Vdc
Emitter−Base Voltage V
EBO
5 Vdc
Collector−Emitter Voltage − 1.5V V
CEX
400 Vdc
Collector Current − Continuous I
C
16 Adc
Collector Current − Peak (Note 1) I
CM
30 Adc
Base Current − Continuous I
B
5 Adc
Total Device Dissipation @ T
C
= 25_C
Derate above 25_C
P
D
250
1.43
W
W/_C
Operating and Storage Junction
Temperature Range
T
J
, T
stg
−65 to +200
_C
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. Pulse Test: Pulse Width = 5 ms, Duty Cycle ≤ 10%.
THERMAL CHARACTERISTICS
Characteristics Symbol Max Unit
Thermal Resistance, Junction−to−Case
R
q
JC
0.7
_C/W
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
16 AMPERES
COMPLEMENTARY SILICON-
POWER TRANSISTORS
250 VOLTS, 250 WATTS
http://onsemi.com
MARKING DIAGRAM
Device Package Shipping
ORDERING INFORMATION
MJ21195G TO−204
(Pb−Free)
100 Units / Tray
MJ2119xG
AYWW
MEX
TO−204AA (TO−3)
CASE 1−07
STYLE 1
MJ2119x = Device Code
x = 5 or 6
G=Pb−Free Package
A = Assembly Location
Y = Year
WW = Work Week
MEX = Country of Origin
MJ21196G TO−204
(Pb−Free)
100 Units / Tray
1
2
3
SCHEMATIC
1
BASE
EMITTER 2
CASE 3
1
BASE
EMITTER 2
CASE 3
PNP
NPN
