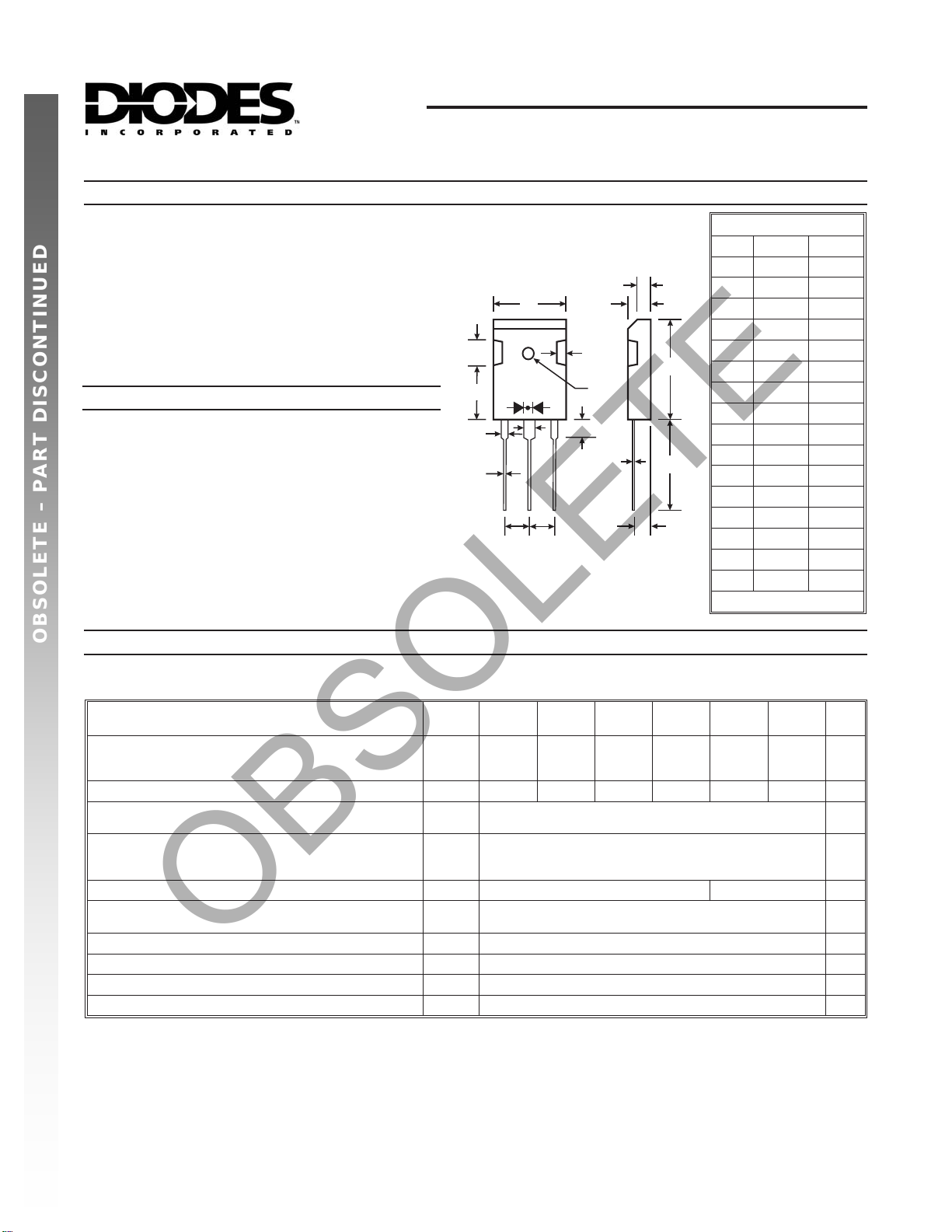

OBSOLETE – PART DISCONTINUED
DS30236 Rev. 4 - 4
1 of 3
www.diodes.com
July 2015
ã Diodes Incorporated
SBL4030PT - SBL4060PT
40A SCHOTTKY BARRIER RECTIFIER
Features
A
B
E
G
J
L
M
N
P
Q
K
S
M
H
R
D
C
Maximum Ratings and Electrical Characteristics
@ T
A
= 25°C unless otherwise specified
·
Schottky Barrier Chip
·
Guard Ring Die Construction for Transient Protection
·
Low Power Loss, High Efficiency
·
High Surge Capability
·
High Current Capability and Low Forward Voltage Drop
·
For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Application
·
Lead Free Finish, RoHS Compliant (Note 3)
Mechanical Data
·
Case: TO-3P
·
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
·
Moisture Sensitivity: Level 1 per J-STD-020C
·
Terminals: Finish - Bright Tin. Plated Leads Solderable per
MIL-STD-202, Method 208
·
Polarity: As Marked on Body
·
Ordering Information: See Last Page
·
Marking: Type Number
·
Weight: 5.6 grams (approximate)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic Symbol
SBL
4030PT
SBL
4035PT
SBL
4040PT
SBL
4045PT
SBL
4050PT
SBL
4060PT
Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
V
RRM
V
RWM
V
R
30 35 40 45 50 60 V
RMS Reverse Voltage
V
R(RMS)
21 24.5 28 31.5 35 42 V
Average Rectified Output Current @ T
C
= 100°C
(Note 1)
I
O
40 A
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on rated load
(JEDEC Method)
I
FSM
375 A
Forward Voltage Drop @ I
F
= 20A, T
C
= 25°C
V
FM
0.58 0.70 V
Peak Reverse Current @ T
C
= 25°C
at Rated DC Blocking Voltage @ T
C
= 100°C
I
RM
1.0
100
mA
Typical Total Capacitance (Note 2)
C
T
800 pF
Typical Thermal Resistance Junction to Case (Note 1)
R
qJC
1.4 °C/W
Operating Temperature Range
T
j
-55 to +125 °C
Storage Temperature Range
T
STG
-55 to +150 °C
Notes: 1. Thermal resistance junction to case mounted on heatsink.
2. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
3. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see
EU Directive Annex Notes 5 and 7.
TO-3P
Dim Min Max
A
1.88 2.08
B
4.68 5.36
C
20.63 22.38
D
18.5 21.5
E
2.1 2.4
G
0.51 0.76
H
15.38 16.25
J
1.90 2.70
K
2.9Æ 3.65Æ
L
3.78 4.50
M
5.2 5.7
N
0.89 1.53
P
1.82 2.46
Q
2.92 3.23
R
11.70 12.84
S
¾ 6.10
All Dimensions in mm
PART OBSOLETE
OBSOLETE
SBL4030PT - SBL4060PT
