(96-395-A/C114E)

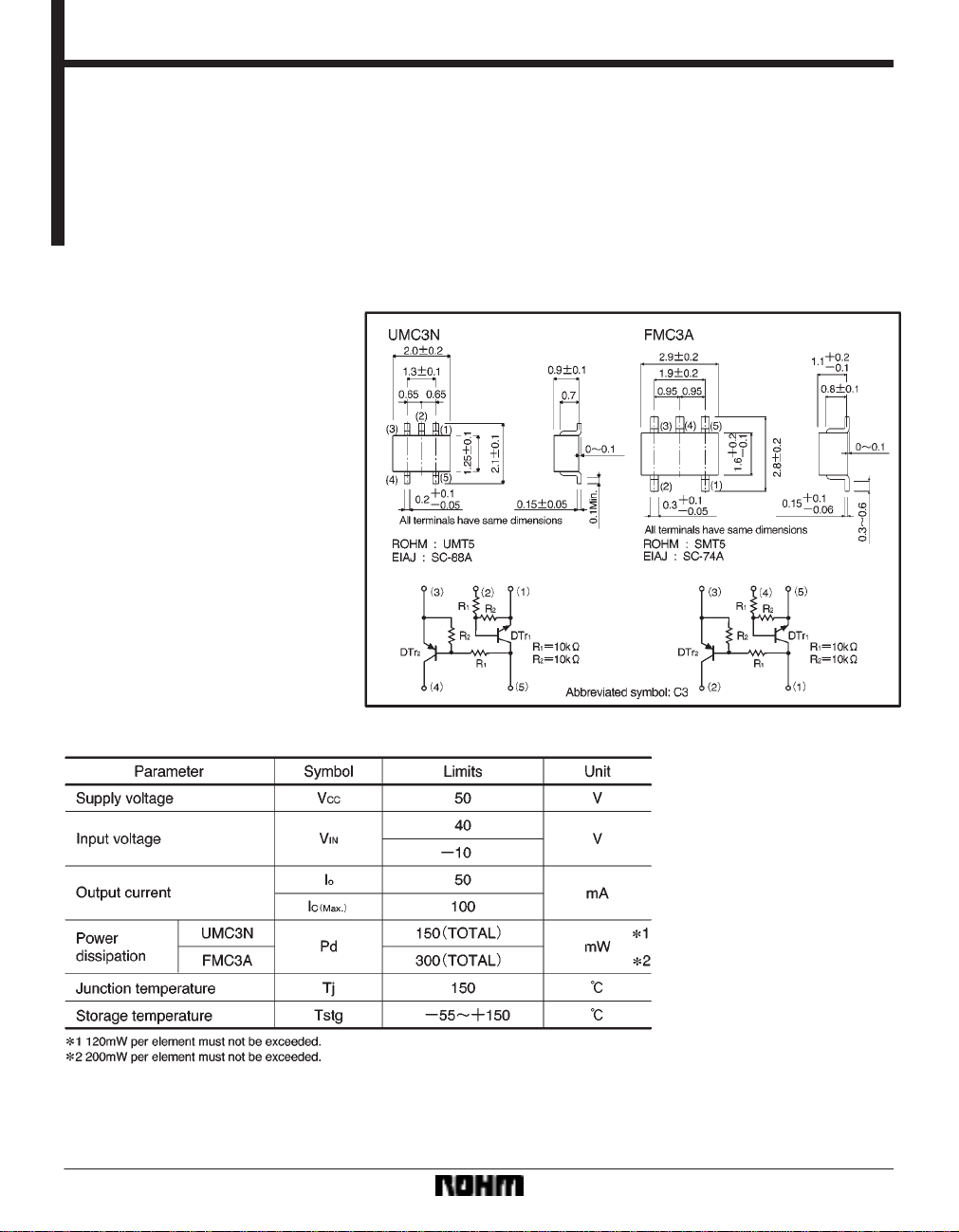

External dimensions (Units: mm)
517
Transistors
Power management
(dual digital transistors)
UMC3N / FMC3A
Features
1) Both the DTA114E chip and
DTC114E chip in a UMT or SMT
package.
2) Ideal for power switch circuits.
3) Mounting cost and area can be cut
in half.
Structure
Epitaxial planar type
NPN/PNP silicon transistor
(Built-in resistor type)
The following characteristics apply to
both DTr
1 and DTr2, however, the “–”
sign on DTr
2 values for the PNP type
have been omitted.
Absolute maximum ratings (Ta = 25C)
