EVAL-AD7405FMCZ User Guide
UG-690
One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the AD7405 16-Bit Isolated Sigma-Delta ADC
FEATURES
Full featured evaluation board for the AD7405
On-board power supplies
Standalone capability
System demonstration platform (SDP-H1) compatible
(EVAL-SDP-CH1Z)
PC software for control and data analysis
EVALUATION KIT CONTENTS
EVAL-AD7405FMCZ evaluation board
CD containing evaluation software for the AD7405
ADDITIONAL EQUIPMENT NEEDED
EVAL-SDP-CH1Z, includes a USB cable and 12 V wall wart
Signal source
PC running Windows XP SP3, Windows Vista, or Windows 7
with USB 2.0 port
ONLINE RESOURCES
Documents Needed
AD7405 data sheet
EVAL-AD7405FMCZ user guide
Required Software
EVAL-AD7405FMCZ evaluation software
FAQs and Troubleshooting
EVALUATION BOARD DESCRIPTION
The EVA L-AD7405FMCZ is a full featured evaluation board
designed to allow the user to easily evaluate all features of the
AD7405 isolated analog-to-digital converter (ADC). The
evaluation board can be controlled by the EVAL-SDP-CH1Z
via the FMCZ connector (J9). The SDP-H1 board (EVAL-SDP-
CH1Z) allows the evaluation board to be controlled through a
USB port of a PC using the evaluation board software available
for download from the product page or from the included
installer CD included in the evaluation board kit.
On-board components include the following:
ADuM6000: isolated iCoupler® 5 k V, dc-to-dc converter
ADP2441: 36 V, 1 A, synchronous, step down dc-to-dc regulator
ADP7104ARDZ-5.0: 5 V low noise LDO
TYPICAL SETUP

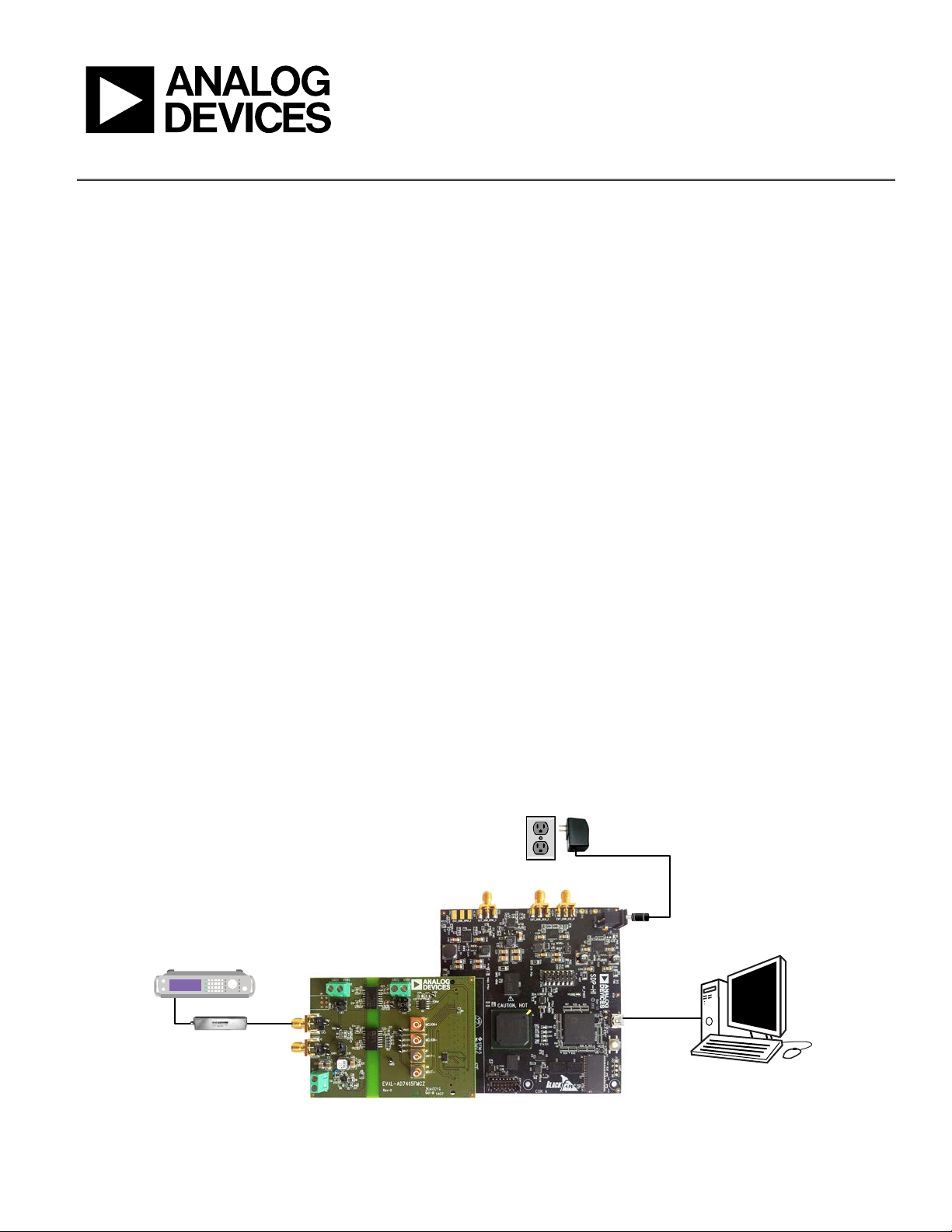

Figure 1. Typical Setup (EVAL-AD7405FMCZ on Left and EVAL-SDP-CH1Z on Right)
ANALOG FILTER
SIGNAL GENERATOR
SWITCHING
POWER
SUPPLY
WALL OUTLET
100V AC TO 240V AC
47Hz TO 63Hz
PC RUNNING EVALUALTION
BOARD SOFTWARE
12304-001
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 20
