EVAL-ADE9078EBZ User Guide
UG-953
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Te l: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the ADE9078 High Performance, Polyphase Energy Metering
Analog Front End (AFE)
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 32
FEATURES
Full featured evaluation board for the ADE9078
PC control in conjunction with the system demonstration
platform (EVAL-SDP-CB1Z)
PC software for control and data analysis (time and
frequency domain)
Standalone capability
EVALUATION KIT CONTENTS
ADE9078 evaluation board
ADDITIONAL EQUIPMENT NEEDED
EVAL-SDP-CB1Z (must be ordered separately)
Includes a mini USB cable
Current transformers or Rogowski coils for 3-phase current
channels and the neutral channel
Precision current and voltage signal source
PC running Windows XP SP2, Windows Vista, or Windows 7
with USB 2.0 port
AVAILABLE RESOURCES
Documents
ADE9078 data sheet
EVAL-ADE9078EBZ user guide
Required software
EVAL-ADE9078EBZ evaluation software
Design and integration files
Schematics, layout files, and bill of materials
GENERAL DESCRIPTION
The EVAL-ADE9078EBZ evaluation board allows the perform-
ance of the ADE9078 energy metering IC to be evaluated in a
context very close to an actual 3-phase meter implementation.
The kit requires purchasing a second board, the controller board
for the system demonstration platform (EVAL-SDP-CB1Z). The
ADE9078 evaluation kit includes evaluation software, written in
LabVIEW®, that provides access to the registers and features of
the device using a PC interface.
Consult the ADE9078 data sheet in conjunction with this user
guide when using the evaluation board.
TYPICAL EVALUATION BOARD SETUP
14345-001

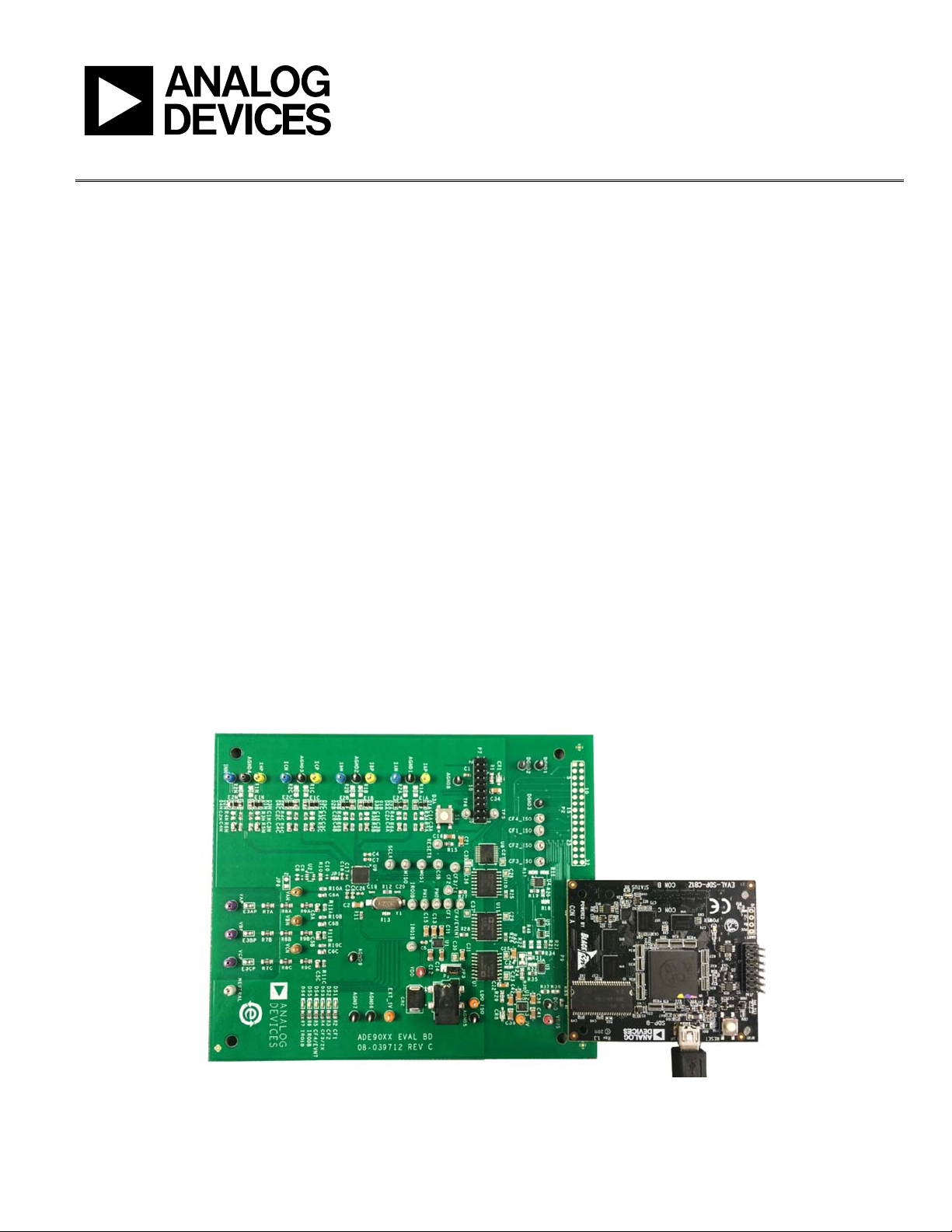

Figure 1. The EVAL-ADE9078EBZ (on the Left) Connected to the EVAL-SDP-CB1Z SDP Interface Board (on the Right)
