LM4040
PRECISION MICROPOWER SHUNT VOLTAGE REFERENCES
LM4040
Document number: DS33195 Rev. 5 - 2
1 of 12
www.diodes.com
March 2012
© Diodes Incorporated
A
Product Line o
f
Diodes Incorporated
Description
The LM4040 is a family of bandgap circuits designed to
achieve precision micro-power voltage references of 2.5V,
3.0V and 5.0V. The devices are available in 0.2% B-grade,
0.5% C-grade and 1% D-grade initial tolerances.
They are available in small outline SOT23 and SC70-5
surface mount packages which are ideal for applications
where space is at a premium.
Excellent performance is maintained over the 60µA to
15mA operating current range with a typical temperature
coefficient of only 20ppm/°C. The device has been
designed to be highly tolerant of capacitive loads so
maintaining excellent stability.
This device offers a pin for pin compatible alternative to the
LM4040 voltage reference.
Features
• Small packages: SOT23 & SC70-5
• No output capacitor required
• Output voltage tolerance
o LM4040B ±0.2% at 25°C
o LM4040C ±0.5% at 25°C
o LM4040D ±1% at 25°C
• Low output noise
• (10Hz to 10kHz) .............. 45µV
RMS
• Wide operating current range 60µA to 15mA
• Extended temperature range -40°C to +125°C
• Low temperature coefficient 100 ppm/°C (max)
• All parts AEC-Q100 Grade1 qualified
Applications
• Battery powered equipment
• Precision power supplies
• Portable instrumentation
• Portable communications devices
• Notebook and palmtop computers
• Data acquisition systems

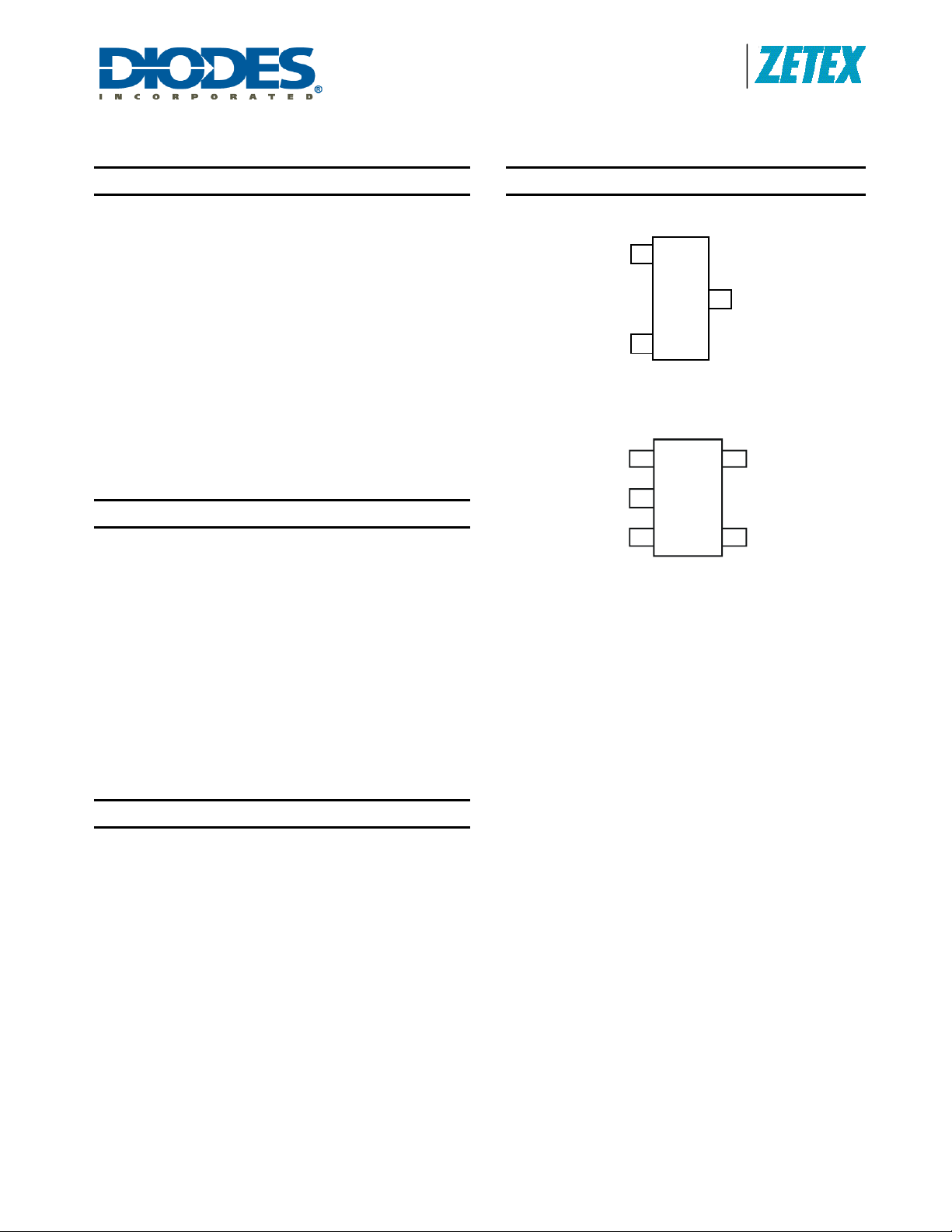

Pin Assignments
*
Anode
Cathode
Top view
*
Pin 1 must be left floating or connected to pin 2
3
1
2
LM4040 F (SOT23)
Anode
*
Cathode
N/C
N/C
1
2
3
4
5
LM4040 H5 (SC70-5)
Top View
* Pin 2 must be left floating or connected to pin 1
