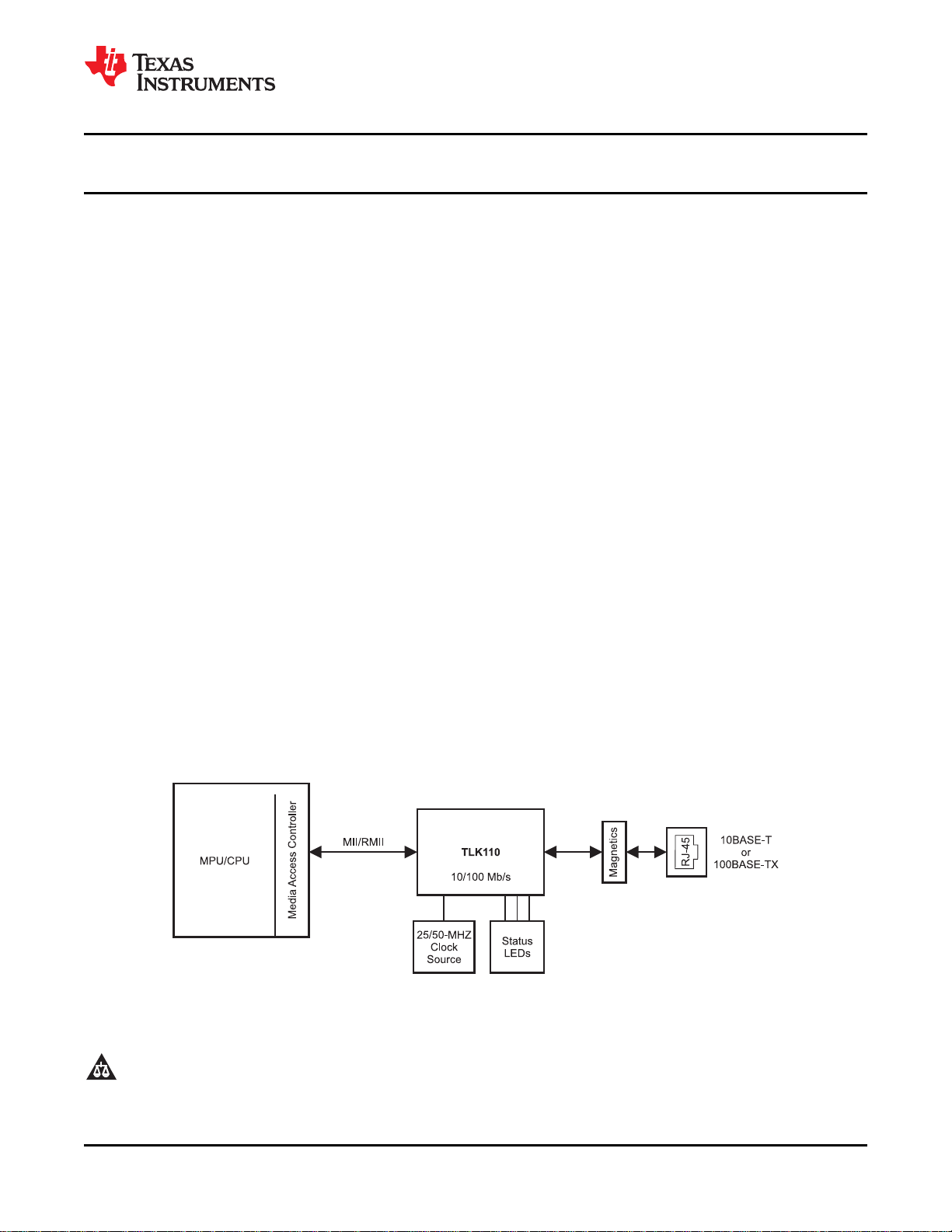

TLK110
www.ti.com
SLLS901D –DECEMBER 2011–REVISED JANUARY 2014
PHYTER
®
Industrial Temperature 10/100Mbs Ethernet Physical Layer Transceiver
Check for Samples: TLK110
1 Introduction
1.1 Features
12345
• Low Power Consumption: • Error-Free 100Base-T Operation up to 150
Meters Under Typical Conditions
– Single Supply: <205mW PHY, 275mW with
Center Tap (Typical) • Error-Free 10Base-T Operation up to 300
Meters Under Typical Conditions
– Dual Supplies: <126mW PHY, 200mW with
Center Tap (Typical) • IEEE 802.3u ENDEC, 10Base-T
Transceivers and Filters
• Programmable Power Back Off to reduce PHY
power up to 20% in systems with shorter • IEEE 802.3u PCS, 100Base-TX Transceivers
cables
• IEEE 1149.1 JTAG
• Low deterministic latency supports IEEE1588
• Integrated ANSI X3.263 Compliant TP-PMD
implementation
Physical Sublayer with Adaptive Equalization
• Cable Diagnostics and Baseline Wander Compensation
• Programmable Fast Link Down Modes, <10µs • Programmable LED Support Link, 10/100Mbs
reaction time Mode, Activity, and Collision Detect
• Variable I/O voltage range: 1.8V to 3.3V • 10/100Mbs Packet BIST (Built in Self Test)
• 3.3V MAC Interface • HBM ESD protection on RD± and TD± of 16kV
• Fixed TX Clock to XI, with programmable phase • 48-pin LQFP Package (7mm) × (7mm)
shift
• Auto-MDIX for 10/100Mbs
1.2 Applications
• Energy Detection Mode
• Industrial Networks and Factory Automation
• 25 MHz Clock Out
• Real Time Industrial Ethernet Applications
• MII and RMII Capabilities
such as EtherCAT
®
, Ethernet/IP™, ProfiNET
®
,
• Serial Management Interface
SERCOSIII and VARAN
• IEEE 802.3u MII
• Motor and Motion Control
• IEEE 802.3u Auto-Negotiation and Parallel
• General Embedded Applications
Detection
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2PHYTER is a registered trademark of Texas Instruments.
3Ethernet/IP is a trademark of ControlNet International, Ltd. under license by Open DeviceNet Vendor Association, Inc..
4EtherCAT is a registered trademark of EtherCAT Technology Group.
5ProfiNET is a registered trademark of PROFIBUS and PROFINET International (PI).
PRODUCTION DATA information is current as of publication date. Products conform to
Copyright © 2011–2014, Texas Instruments Incorporated
specifications per the terms of the Texas Instruments standard warranty. Production
processing does not necessarily include testing of all parameters.
