HMC679LC3C
v06.0514
26 GHz, T FLIP-FLOP w/ RESET &
PROGRAMMABLE OUTPUT VOLTAGE
The HMC679LC3C is a T Flip-Flop w/Reset desig-
ned to support clock frequencies as high as 26
GHz. During normal operation, with the reset pin not
asserted, the output toggles from its prior state on the
positive edge of the clock. This results in a divide-by-
two function of the clock input. Asserting the reset
pin forces the Q output low regardless of the clock
edge state (asynchronous reset assertion). Reversing
the clock inputs allows for negative-edge triggered
applications.
All differential inputs to the HMC679LC3C are CML and
terminated on-chip with 50 Ohms to the positive supply,
GND, and may be DC or AC coupled. Outputs can be
connected directly to a 50 Ohm ground-terminated
system or drive devices with CML logic input. The
HMC679LC3C also features an ouput level control pin,
VR, which allows for loss compensation or signal level
optimization. The HMC679LC3C operates from a single
-3.3 V supply and is available in ROHS-compliant 3x3
mm SMT package.
General Description
Features

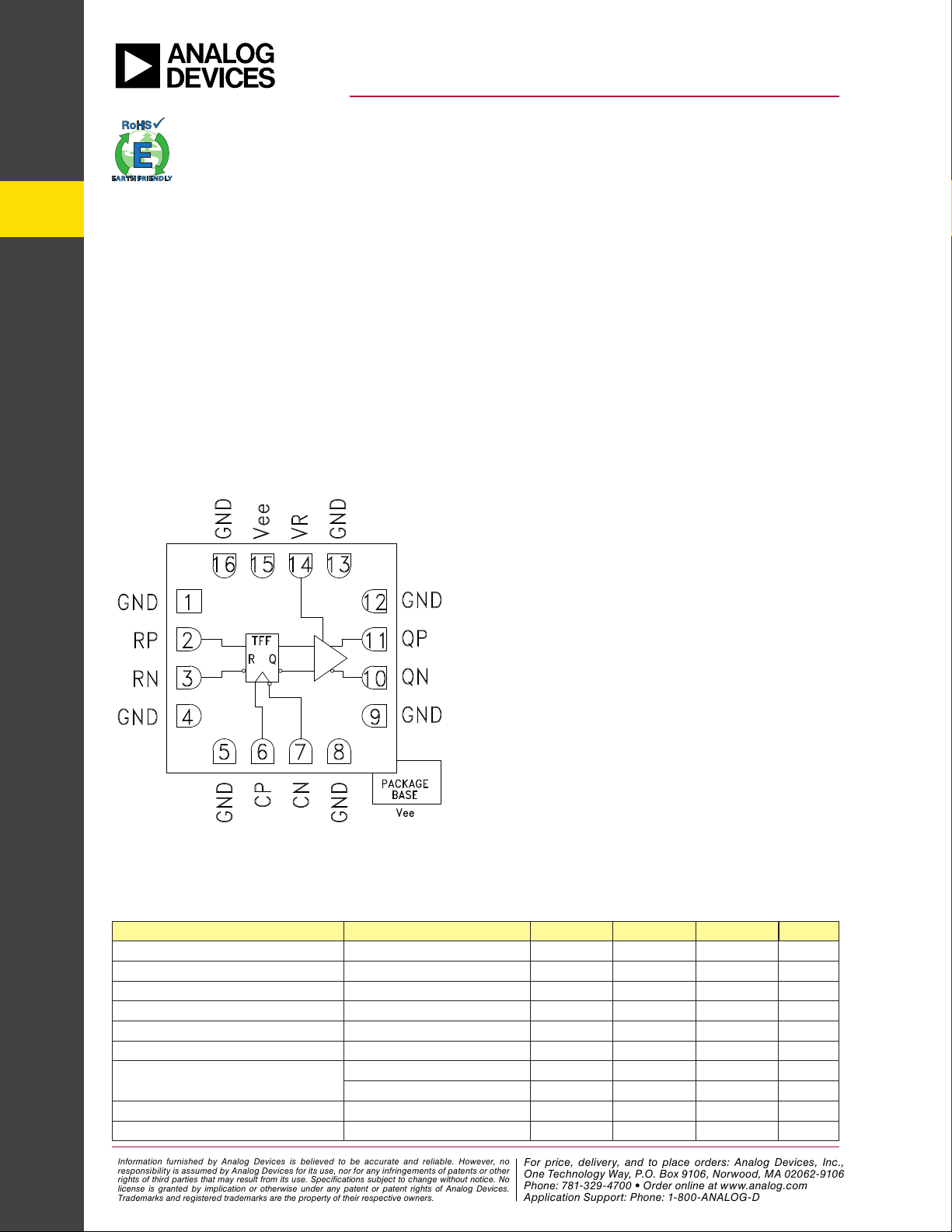

Functional Diagram
Supports Clock Frequencies up to 26 GHz
Differential or Single-Ended Operation
Fast Rise and Fall Times: 18 / 17 ps
Low Power Consumption: 270 mW typ.
Programmable Differential Output Voltage Swing:
600 - 1100 mVp-p
Propagation Delay: 95 ps
Single Supply: -3.3 V
16 Lead Ceramic 3 x 3 mm SMT Package: 9 mm
2
Typical Applications
The HMC679LC3C is ideal for:
• Serial Data Transmission up to 26 Gbps
• High Speed Frequency Divider (up to 26 GHz)
• Broadband Test & Measurement
• RF ATE Applications
Electrical Specications, T
A
= +25 ºC, Vee = -3.3 V, VR = 0 V
Parameter Conditions Min. Typ. Max Units
Power Supply Voltage -3.6 -3.3 -3.0 V
Power Supply Current 82 mA
Maximum Clock Rate 26 GHz
Input Voltage Range -1.5 0.5 V
Input Differential Range 0.1 2.0 Vp-p
Input Return Loss Frequency <23 GHz 10 dB
Output Amplitude
Single-Ended, peak-to-peak 550 mVp-p
Differential, peak-to-peak 1100 mVp-p
Output High Voltage -10 mV
Output Low Voltage -560 mV
