HIGH SPEED DIGITAL LOGIC - SMT
1
HMC722LC3C
v04.0313
GATE, w/ PROGRAMMABLE OUTPUT VOLTAGE
13 Gbps, FAST RISE TIME AND/NAND/OR/NOR
The HMC722LC3C is an AND/NAND/OR/NOR fun-
ction designed to support data transmission rates
of up to 13 Gbps, and clock frequencies as high
as 13 GHz. The HMC772LC3C may be easily con-
gured to provide any of the following logic functions:
AND, NAND, OR and NOR. The HMC722LC3C also
features an output level control pin, VR, which allows
for loss compensation or for signal level optimization.
All input signals to the HMC722LC3C are terminated
with 50 Ohms to ground on-chip, and may be either
AC or DC coupled. The differential outputs of the
HMC722LC3C may be either AC or DC coupled.
Outputs can be connected directly to a 50 Ohm to ground
terminated system, while DC blocking capacitors may
be used if the terminating system is 50 Ohms to a non-
ground DC voltage. The HMC722LC3C operates from
a single -3.3V DC supply, and is available in a ceramic
RoHS compliant 3x3 mm SMT package.
General Description
Features

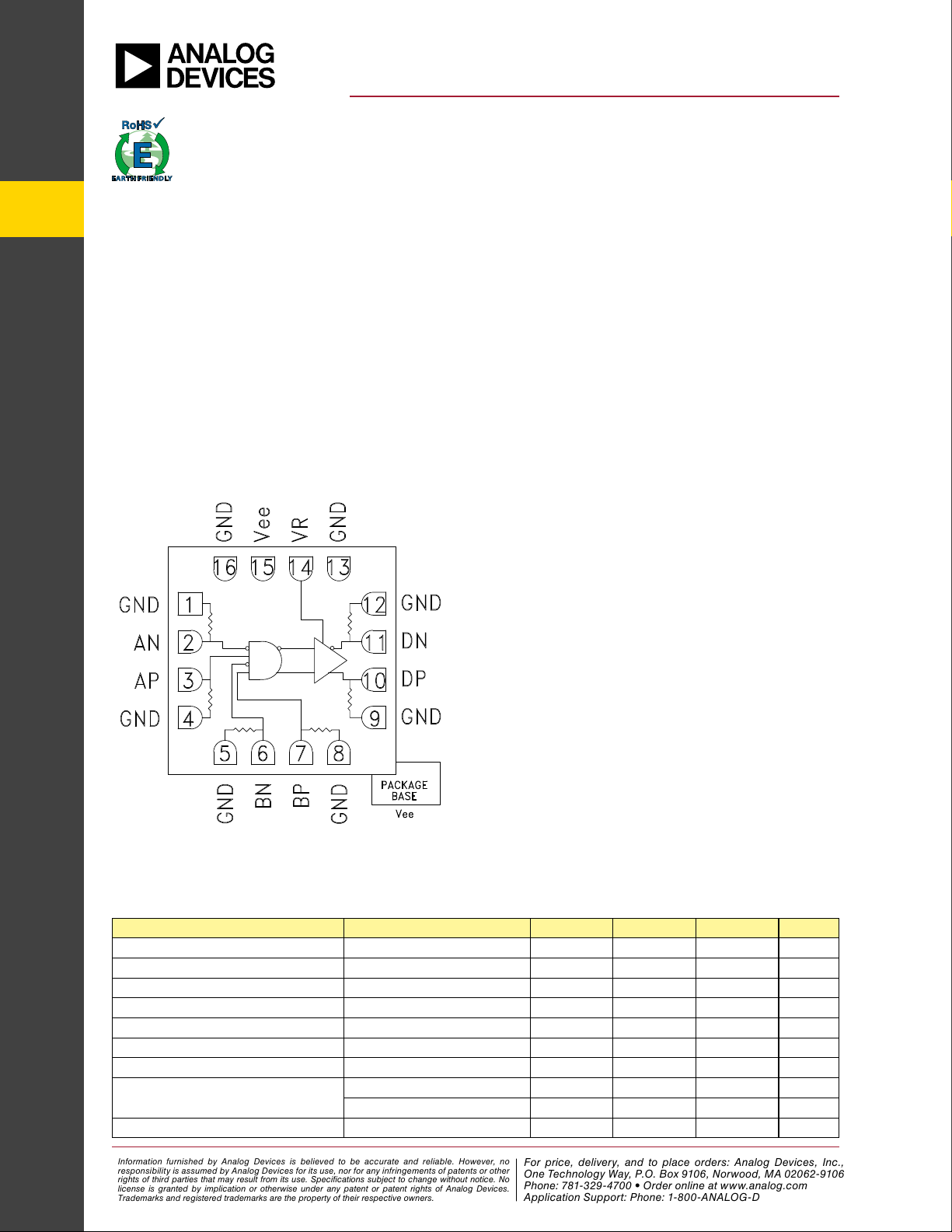

Functional Diagram
Supports High Data Rates: up to 13 Gbps
Differential & Singe-Ended Operation
Fast Rise and Fall Times: 19 / 18 ps
Low Power Consumption: 230 mW typ.
Programmable Differential
Output Voltage Swing: 600 - 1100 mV
Propagation Delay: 95 ps
Single Supply: -3.3V
16 Lead Ceramic 3x3mm SMT Package: 9mm
2
Typical Applications
The HMC722LC3C is ideal for:
• RF ATE Applications
• Broadband Test & Measurement
• Serial Data Transmission up to 13 Gbps
• Digital Logic Systems up to 13 GHz
• NRZ-to-RZ Conversion
Electrical Specications, T
A
= +25 °C, Vee = -3.3V
Parameter Conditions Min. Typ. Max Units
Power Supply Voltage -3.6 -3.3 -3.0 V
Power Supply Current 70 mA
Maximum Data Rate 13 Gbps
Maximum Clock Rate 13 GHz
Input High Voltage -0.5 0.5 V
Input Low Voltage -1.0 0.0 V
Input Return Loss Frequency <13 GHz 10 dB
Output Amplitude
Single-Ended, peak-to-peak 550 mVp-p
Differential, peak-to-peak 1100 mVp-p
Output High Voltage -10 mV
